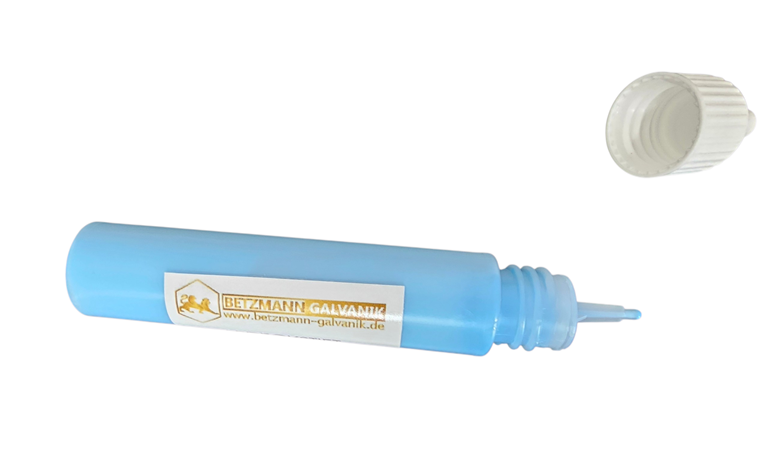

Covering pen

Galvano Pen with 3 Pads – Precision Pen Plating Tool for Professional ElectroplatingProfessional Pen Plating Tool for Selective Electroplating ApplicationsThe Galvano Pen with 3 Pads is the ideal tool for precise, selective and professional electroplating. Designed specifically for pen plating, brush plating and swab plating, it allows you to plate only the desired areas without immersing the entire workpiece in a plating bath.Supplied with three interchangeable pads of different sizes, the Galvano Pen is suitable for both intricate details and larger surfaces, ensuring uniform metal deposition with maximum control. It is the perfect solution for repairs, restoration work, decorative finishing and functional electroplating.The Galvano Pen is fully compatible with the premium electroplating solutions from Betzmann Galvanik, including gold, silver, copper, nickel, chromium, rhodium, palladium, platinum, cobalt, zinc and many other plating electrolytes.Your Advantages at a GlanceDesigned for pen plating, brush plating and swab platingIncludes three interchangeable plating padsPerfect for selective and localised electroplatingNo immersion tank requiredUniform metal depositionLow electrolyte consumptionIdeal for repairs and touch-up platingErgonomic and lightweight designSuitable for hobbyists, workshops, laboratories and industrial applicationsProfessional quality from Betzmann GalvanikWhy Choose a Galvano Pen?A Galvano Pen allows you to apply metal coatings exactly where they are needed, saving both plating solution and processing time.Unlike conventional tank plating, there is no need to immerse the complete workpiece. Instead, selected areas can be plated precisely with gold, silver, nickel, copper, chromium, rhodium and many other metals.Typical applications include:Repairing damaged platingLocalised electroplatingDecorative metal finishingSelective platingPlating assembled componentsReaching difficult or inaccessible areasThree Pads for Maximum FlexibilityThe kit includes three different pad sizes:Small Pad – Ideal for intricate details and precision workMedium Pad – Perfect for general-purpose electroplatingLarge Pad – Suitable for larger surfaces and faster coverageThe pads can be replaced quickly, allowing you to adapt the tool perfectly to every application.Typical ApplicationsIdeal for:Jewellery manufacturingJewellery repairWatchmakingClassic car restorationModel makingElectronicsPrinted circuit boards (PCBs)Decorative metalworkMusical instrumentsMetal finishingIndustrial maintenanceLaboratoriesWorkshopsCompatible with Numerous Electroplating SolutionsWhen used with the appropriate electrolyte, the Galvano Pen is suitable for:Gold platingSilver platingNickel platingCopper platingChromium platingRhodium platingPalladium platingPlatinum platingCobalt platingZinc platingMany other electroplating applicationsEasy to UseThoroughly clean and degrease the workpiece.Carry out the appropriate surface preparation.Select the correct pad size.Saturate the pad with the desired plating solution.Connect the Galvano Pen to the positive (+) terminal of the power supply.Connect the workpiece to the negative (-) terminal.Move the pen evenly across the surface during plating.Rinse the workpiece thoroughly with clean water and dry.For optimum results, we recommend using the professional electroplating power supplies and electrolytes from Betzmann Galvanik.Package Contents1 × Galvano Pen3 × Interchangeable Plating Pads (different sizes)Quality from Betzmann GalvanikThe Galvano Pen with 3 Pads has been developed for professional pen plating and brush plating applications. Its ergonomic design, interchangeable pads and precise operation make it the ideal tool for high-quality electroplating, repairs and selective metal finishing in workshops, laboratories and industrial environments.

Graphite Electrode Ø 6 mm – Universal Electrode for Professional ElectroplatingChemically Inert Graphite Electrode for Tank, Pen and Brush PlatingThe Graphite Electrode Ø 6 mm is manufactured from high-quality, high-density fine-grain graphite and is ideal for a wide range of electroplating applications. It is used wherever a metal-free, chemically inert electrical conductor is required and contamination of the electrolyte by metal ions must be avoided.Thanks to its excellent chemical resistance, graphite dissolves only very slowly in the electrolyte. This keeps the electrolyte composition stable and ensures high-quality, uniform plating results.The graphite electrode is perfectly suited for tank plating, pen plating and brush (tampon) plating and is compatible with a wide variety of electroplating solutions.Your AdvantagesManufactured from high-quality fine-grain graphiteChemically inertVery low wearNo contamination of the electrolyte with metal ionsExcellent chemical resistanceUniform current distributionSuitable for a wide range of electroplating processesLong service lifeFits standard 6 mm electrode holdersProfessional quality from Betzmann GalvanikWhy Use a Graphite Electrode?Many electroplating processes require that no additional metal ions enter the electrolyte, as these can negatively affect coating quality.Graphite offers several important advantages:Chemically almost inertVery low solubilityExcellent temperature resistanceGood electrical conductivityNo contamination of the electrolyteThese properties make graphite the preferred choice for many decorative and technical plating applications.Typical ApplicationsIdeal for:Gold platingSilver platingChromium platingPalladium platingPlatinum platingWhite bronze platingBlack nickel platingTank platingPen platingBrush (tampon) platingActivating solutionsCleaning solutionsWorkshopsLaboratoriesIndustrial applicationsRestorationModel makingMaterial PropertiesThe electrode is manufactured from high-density fine-grain graphite and offers:Excellent chemical resistanceGood electrical conductivityLow wearSlow consumption in the electrolyteLong service lifeApplication InstructionsBefore use:Keep the electrode clean and free from greaseUse a suitable electrolyteFollow the recommended voltage and current settingsDuring operation, the graphite electrode wears only slowly. Replacing it when necessary ensures consistently high-quality plating results.Technical SpecificationsMaterial: High-density fine-grain graphiteDiameter: 6 mmExcellent chemical resistanceVery good electrical conductivitySuitable for standard electrode holdersPackage Contents1 × Graphite Electrode Ø 6 mmQuality from Betzmann GalvanikBetzmann Galvanik supplies high-quality electrodes and professional accessories for demanding electroplating applications. The Graphite Electrode Ø 6 mm offers excellent chemical resistance, long service life and universal compatibility, making it the ideal choice for hobby users, workshops and industrial applications.

Gold Electrolyte 4 g/L – Gold Plating Solution for Electroplating and Compatible Brush Plating SystemsProduct DescriptionThis gold electrolyte contains 4 g/L of gold and is designed for the electroplating of suitable workpieces. It enables the deposition of a high-quality gold coating and, subject to compatibility with the relevant equipment, may be suitable for both conventional tank plating and appropriate brush plating or pen plating applications.The electrolyte is intended for users who wish to apply a gold coating to suitable metal surfaces. The achievable coating quality and deposition rate depend on the operating conditions, workpiece preparation and plating method used.Important: This product contains potassium cyanide. Before use, read the current Safety Data Sheet (SDS) carefully and follow all applicable safety and handling requirements.Benefits and FeaturesGold electrolyte containing 4 g/L goldDesigned for suitable electroplating applicationsMay be used with compatible brush plating systems, subject to confirmation of suitabilityDeposited coating specified as 99.9% goldDefined operating parameters for controlled applicationTechnical data covering deposition rate, coating thickness and bath maintenanceGold replenishment possible using a suitable gold replenisherIntended for professional and knowledgeable users with appropriate technical equipmentTechnical DataPropertySpecificationProduct typeGold electrolyteGold concentration4 g/LRecommended temperature range18–40 °CRecommended pH range4.3–4.5Reference current density0.01 A/cm²Recommended current density range0.008–0.012 A/cm²Reference deposition rate0.15 µm/minReference conditions20 °C and low agitationSpecified maximum coating thickness4 µmGold content of deposited coating99.9%Specified coating hardness190–210 HVDensity of deposited gold19.3 g/cm³Cathode efficiencyApprox. 25% at 0.01 A/cm²Internal stressMediumRecommended maximum bath lifeApprox. 5–6 gold turnoversShelf life1 yearStorageProtect from direct sunlightHazard informationContains 0.15% potassium cyanideTransportAccording to the available information, not classified as dangerous goods for transport; verify against the current SDSThe deposition data refer to the stated reference conditions. Actual results may vary depending on the workpiece, pretreatment, current distribution, temperature, agitation and plating method.Operating Parameters for Tank PlatingCurrent DensityThe specified reference current density is 0.01 A/cm², with a recommended range of 0.008–0.012 A/cm².The appropriate current density depends on the geometry of the workpiece, its effective surface area and the conditions within the bath. Unsuitable or excessive operating values may adversely affect the quality of the gold coating.TemperatureThe specified operating temperature range is 18–40 °C. The reference deposition rate is based on a temperature of 20 °C with low agitation.Temperature affects the deposition rate and the behaviour of the electrolyte. For reproducible results, operating conditions should be kept as consistent as possible.pH ValueThe specified pH range is 4.3–4.5. The pH should be maintained within the intended operating range. Any adjustment must follow a procedure specifically approved for this product.Deposition Rate and Coating ThicknessAt a current density of 0.01 A/cm², a temperature of 20 °C and low agitation, the specified deposition rate is approximately 0.15 µm/min.The specified maximum coating thickness is 4 µm. The actual achievable thickness depends on the operating conditions and the condition of the electrolyte.Important: These reference values do not automatically apply to brush plating. With pen plating, the actual current density and coating results must be assessed under the specific application conditions.Application in Brush Plating and Pen PlatingIn brush plating, electrolyte is transferred to the surface being coated using a suitable electrode and an electrolyte-saturated tampon or applicator. This method is particularly useful for localised gold plating and repair work where the entire workpiece cannot or should not be immersed in a plating bath.Use of this electrolyte in a brush plating system is conditional on its suitability for the specific equipment and operating method being confirmed.Required EquipmentSuitable brush plating or pen plating systemGraphite or platinum electrode compatible with the electrolyteAppropriate tampon or electrode coveringGold electrolyte containing 4 g/L goldSuitable DC power supplyPersonal protective equipment as specified in the Safety Data SheetApplication Instructions1. Prepare the workpieceThoroughly clean and degrease the surface. Depending on the base material and coating system, suitable activation may be necessary. The preparation procedure must be appropriate for the substrate and the plating process.2. Prepare the electrode and tamponUse a graphite or platinum electrode only if it is compatible with the electrolyte and the equipment. Wet the appropriate tampon with the electrolyte in accordance with the equipment manufacturer's instructions. The tampon must remain sufficiently moist during application without dripping uncontrollably.3. Check the electrical connectionsIn conventional electroplating, the workpiece is normally connected as the cathode to the negative terminal, while the suitable working electrode is connected to the positive terminal. The correct configuration must be confirmed against the operating instructions for the specific equipment and its approval for this electrolyte.4. Set the voltageA voltage starting at 4 V may be considered only if it is approved for the particular brush plating system and this electrolyte. Voltage is not a universal operating setpoint. The actual current and current density depend, among other factors, on the contact area, pressure, tampon wetting and electrical resistance.5. Apply the gold coatingMove the wetted tampon evenly across the prepared surface. Maintain consistent movement, adequate wetting and stable electrical contact. Do not allow the tampon to dry out. Determine the appropriate operating values in accordance with the equipment manufacturer's instructions and the requirements of the specific application.6. Inspect the resultCheck the coating for uniformity and adhesion. The achievable coating thickness and deposition rate may differ from those obtained with conventional tank plating.Important Notes on Brush PlatingThe reference deposition rate of 0.15 µm/min at 0.01 A/cm² must not be transferred directly to brush plating without verification. The stated maximum coating thickness and coating quality must also be assessed under the actual application conditions.Graphite and platinum electrodes may only be used if they are compatible with the electrolyte and the system being used.Gold Replenishment and Bath MaintenanceDuring electroplating, gold is deposited from the electrolyte. As the bath is used, the available gold concentration decreases. A suitable gold replenisher specified to contain 16 g/L gold is intended for replenishing the gold consumed.The required replenishment depends on the actual gold consumption, bath volume and condition of the electrolyte. The following figures illustrate the calculation of gold turnovers and theoretical gold consumption.Calculating Gold TurnoversOne litre of fresh electrolyte containing 4 g/L gold initially contains 4 g of gold.Gold turnoversTheoretical gold consumptionGold replenisher containing 16 g/L1 turnover4 g gold250 ml5 turnovers20 g gold1,250 ml6 turnovers24 g gold1,500 mlThe table refers to one litre of starting electrolyte and the calculated replenishment volume required to replace the corresponding amount of gold. It does not replace an assessment of the actual bath concentration or condition. Replenishment must be based on an appropriate calculation and take the liquid volume into account.The recommended maximum bath life is approximately 5–6 gold turnovers. This is a guideline, not a guarantee that the bath will maintain consistent performance throughout this period.Evaporation and Liquid LossesEvaporation can affect the liquid level and concentration of the bath. According to the available product information, evaporation losses should be compensated for at the end of the working day using deionised water, restoring the original liquid level.Not all liquid losses are caused by evaporation. If electrolyte is carried out of the bath on workpieces, tampons or equipment, both liquid and dissolved gold are lost. These losses must be taken into account when maintaining the bath.Minimising Gold Losses Through Drag-OutDuring tank plating, allow coated workpieces to drain above the bath so that adhering gold-bearing electrolyte can return to the bath. This helps reduce gold losses caused by drag-out.With brush plating, controlled wetting and careful handling of the electrolyte are also important. Spilled or contaminated solution must not be returned to the bath indiscriminately.Crystallisation in a Nearly Exhausted BathAccording to the available information, potassium salts may crystallise when the bath is nearing exhaustion. Crystallisation indicates that the condition of the bath should be checked.Do not simply add water or replenisher and continue working. Determine the cause in accordance with the product-specific instructions and the Safety Data Sheet.Deposited Gold CoatingThe following values are specified for the deposited gold coating:Gold content: 99.9%Hardness: 190–210 HVDensity: 19.3 g/cm³Internal stress: MediumThe actual coating quality depends on workpiece preparation, current conditions, electrolyte condition and operating parameters.Storage and Shelf LifeSpecified shelf life: 1 yearProtect from direct sunlightKeep the container closed in accordance with the manufacturer's instructionsFollow the Safety Data Sheet and product labellingPrevent access by unauthorised personsSafety InformationThis product contains 0.15% potassium cyanide and requires knowledgeable and safe handling.Read the current Safety Data Sheet in full before use.Ensure suitable personal protective equipment and an appropriate workplace are available.Avoid contact with skin and eyes and do not swallow the product.Ensure suitable ventilation and safe handling procedures.Never mix with acids, acidic cleaners or other incompatible chemicals. Contact between cyanide-containing solutions and acids can release highly toxic hydrogen cyanide gas.Do not allow the electrolyte, rinsing water or residues to enter drains. Dispose of them only in accordance with applicable regulations.Store only in suitable, clearly labelled and securely closed containers.The final hazard classification and all mandatory protective measures must be based on the current Safety Data Sheet for the specific product. The absence of a dangerous-goods transport classification does not mean that the product is harmless.Transport InformationAccording to the available product information, the electrolyte is not classified as dangerous goods for transport. This statement must be verified against the current Safety Data Sheet and the applicable transport regulations before publication.Frequently Asked QuestionsHow much gold does the electrolyte contain?The electrolyte contains 4 g of gold per litre.Can this electrolyte be used for brush plating?It may be suitable for compatible brush plating systems, provided that compatibility of the electrolyte, electrode and operating conditions has been confirmed.Which electrode can be used for brush plating?A suitable graphite or platinum electrode may be considered if it is approved for the electrolyte and the equipment being used.Can I use 4 V for brush plating?A voltage starting at 4 V may be appropriate for certain devices and applications. However, it is not a universal setpoint. The equipment's permitted operating values and the actual current density are decisive.How quickly does the electrolyte deposit gold?For tank plating, the specified rate is approximately 0.15 µm/min at 0.01 A/cm², 20 °C and low agitation. This value cannot be transferred directly to brush plating.How is gold replenished?A suitable gold replenisher containing 16 g/L gold is intended for replenishment. The required quantity depends on gold consumption and the condition of the bath.Is the electrolyte safe if it is not classified as dangerous goods for transport?No. The product contains potassium cyanide and requires the protective measures specified in the Safety Data Sheet. Transport classification does not determine the product's health hazards.Gold Electrolyte for ElectroplatingThis gold electrolyte containing 4 g/L gold offers defined technical specifications for suitable gold plating applications. Follow the operating parameters, bath maintenance instructions and special safety requirements associated with cyanide-containing electrolytes.Before using the electrolyte in a brush plating system, verify compatibility and the permitted operating conditions.
