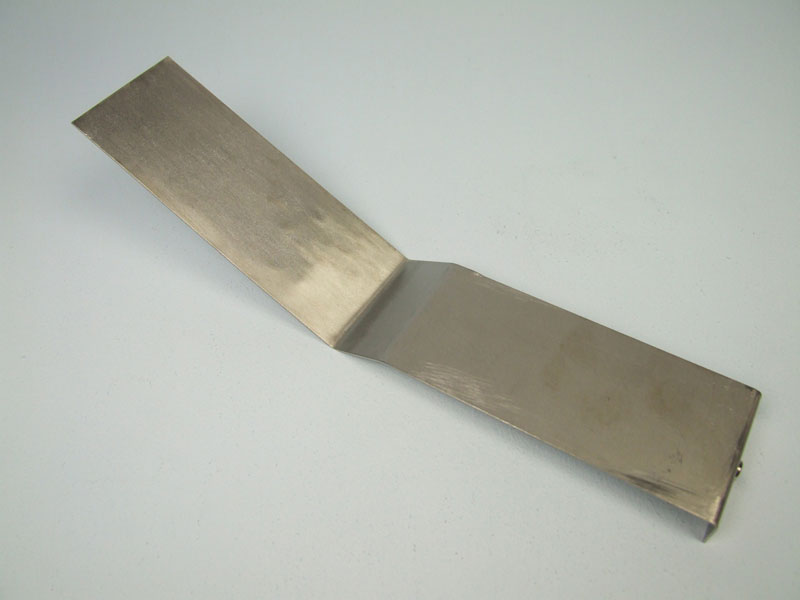

Flat Platinum Electrode XXL

Flat Platinum Electrode XXL (SW10032)

Short Description

The Flat Platinum Electrode XXL is a large‑area electrode made from platinised titanium, designed for fast and even electroplating of large flat surfaces. Its broad contact area significantly reduces plating time and delivers uniform, high‑quality metal finishes – especially for gold, silver and other precious metal processes.

Product Description

This electrode features a titanium base with an evenly applied platinum coating, which is chemically inert and minimally reactive in electrolytes, ensuring clean, high‑quality metal deposition. Platinised titanium electrodes are widely used in electroplating because they provide excellent corrosion resistance and do not contaminate plating solutions.

In the XXL format, it offers a plating surface of approximately 5.5 × 14 cm, making it ideal for large, un‑contoured surfaces. This allows plating up to about 25× faster than standard rod electrodes, particularly in bath or brush plating applications.

Typical Applications

• Electroplating large, flat surfaces such as signs, plates, dishes and rims

• Gold, silver, rhodium or other precious metal finishes

• Workshop, lab and small production workflows with large parts

• Brush and pen plating as well as bath electroplating

Key Benefits

• Extra large active surface: promotes even current distribution

• Platinum‑coated titanium: chemically inert and ideal for precious metal plating

• Efficient deposition: faster plating than narrower electrodes

• Chemical resistance: suitable for a range of plating solutions

• Versatile use: works with standard electroplating systems

Usage Instructions

1. Preparation: Clean and degrease the workpiece thoroughly.

2. Placement: Position the electrode in the electrolyte to cover the target area evenly.

3. Electrical connection: Connect the electrode as the anode (positive terminal) and the workpiece as the cathode.

4. Plating: Adjust current and voltage according to the plating solution.

5. Aftercare: Clean electrode and plated item after use to remove residues.

Conclusion

The Flat Platinum Electrode XXL provides a professional‑grade solution for electroplating large, flat surfaces. Its large active area, chemical stability and efficient current distribution make it ideal for hobbyists, workshop professionals and industrial plating applications alike.
